SteriShapes die-cuts

SteriShapes die-cuts

Intended use
SteriShape™ die-cuts are intended to be used for applying reusable drapes to the patient’s skin in order to create a sterile and hygienic operating environment.

Product description

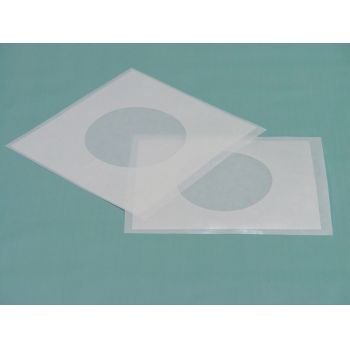

SteriShape™ die-cuts are pre-cut OR-tapes especially designed for covering systems for specialized surgery (e.g. eye or cardiac surgery). These die-cuts are made using Eurotape's proven OR-tapes, providing a safe and secure way of sealing the operating area. The adhesives are pressure and temperature sensitive and completely soluble on the textile side during the washing process. On the patient side it has a disinfectant resistant adhesive coating which is not soluble but does not leave any residual on the drape.


Please feel free to contact us,
if you would like to receive more information about our products.


Product name Product code Color Dimensions Appliance Type Elasticity Skin side adhesive strength Carrier Drape side adhesive strength Solubility of the tape construction MVTR (1)
SteriShape┬Ö DC-xxx 10 x 12cm / ├ś 5x7cm
12 x 14,5cm / ├ś 5x7cm
15 x 17cm / ├ś8,5x13cm
17 x 21cm / ├ś8,5x13cm
For ophthalmological or cardiac surgery
SteriShape┬Ö DC-xxx 2 12 x 15cm / ├ś 8,0cm
15 x 16cm / ├ś 9,0cm
16 x 16cm / ├ś6,0cm
For ophthalmological surgery
SteriShape┬Ö DC-xxx 3 20 x 20cm / ├ś 11cm
20 x 20cm / ├ś 12cm
22 x 22cm / ├ś8,4cm
22 x 22cm / ├ś11,7cm
For cardiac surgery
SteriShape┬Ö DC-xxx 4 15 x 15cm / ├ś 8,0cm / 2x 1/2 / 2xFL Two half die-cuts to increase or decrease the size of the hole
SteriShape™ DC-xxx 5 20 x 20cm / 10cm
20 x 25cm / 10x15cm
22 x 22cm / 12cm
General purpose die-cut
SteriShape™ DC/RT-xxx 9,5 x 17,5cm (tape = 4,5cm) Special die-cut for textile with a diamond shaped embroidered opening
SteriShape™ DC-xxx 7 12,3 x 16,7cm set of 2 pcs For U-drapes
SteriShape┬Ö DC-PEH533 22 x 22cm / ├ś11,7cm For cardiac surgery. With this version, the closed release liner stays on the die-cut until use in the OR
